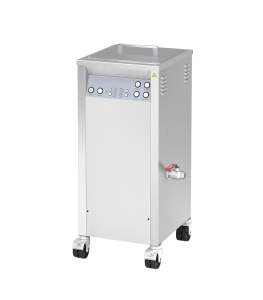

BC-Sonic_25/45 42 L

Art.-Nr : G24042

Parts featuring rigid surfaces and complex geometries can be cleaned effectively with ultrasonic waves. Even difficult cases, contaminations such as dried oils and greases, paint and varnish, or corroded parts, are dissolved even in minute bores, material pores and orifices. The plus factor: The BC-Sonic 25/45 Ultrasonic Cleaning Device features different frequencies.

25 kHz of ultrasonic power → for rough precleaning
45 kHz of ultrasonic power → for gentle final cleaning
Temperature setting 30 °C – 80 °C (86 °F – 176 °F)
Integrated sweep function for optimal ultrasonic field distribution
Part-time pulse function for intensification of the ultrasonic cleaning effect
Part-time dynamic function
Optional extras: Stainless steel basket and loose or hinged lid (stainless steel) for noise protection and evaporation reduction
Castors instead of feet

Do you have any questions concerning this product?

Product Details

The part-time dynamic function is a combination of the sweep- and pulse functions → reduces...more

Close menu

BC-Sonic_25/45 42 L

The part-time dynamic function is a combination of the sweep- and pulse functions → reduces cleaning times and dissolves extremely persistent contaminations.

working volume (L)	42
basket inside dimensions W/H/D (mm)	255/230/370
external dimensions W/H/D (mm)	500/550/936
heating power(W)	1400

Technical specification

Type of contamination:	Corrosion protection, Dust, abrasion particles, Limescale, rust (mineral), Resin, wax, Soldering agent, Varnish
Amount of parts:	Individual parts, Small series, small quantities
Component geometry:	Parts with narrow gaps(<1mm), Scooping parts, Whole components (without dismantling)
Seal of approval:	Stainless Steel
Füllmenge maximal:	42 L
Diameter of the basket, inside approx.:	255 x 230 x 370 mm
Empty weight:	45 kg
Load capacity:	12 kg
Power consumption approx. :	2000 W
Heating:	1400 W

Across all sectors of the industry Maintenance of e.g. carburettors, filters, shafts,...more

Close menu

Field of application

Across all sectors of the industry
Maintenance of e.g. carburettors, filters, shafts, valves, pumps, motors, and plant components of any kind
Paint stripping from small parts
Derusting of small parts

Depending on the contamination and material, different US cleaners are at your disposal....more

Close menu

Usage

Depending on the contamination and material, different US cleaners are at your disposal.
Recommended cleaners: PROLAQ US, BIO-RUST F, STAR US range (depending on the material)
Our competent Bio-Circle Team will be happy to assist you with any query you may have. We look forward to consulting you!
