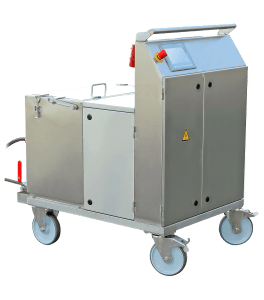

Produktfoto RWR 80 L KST Voll-Automatik SPS

RWR 80 L KST Voll-Automatik SPS von der Seite

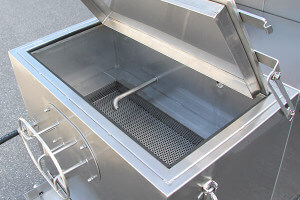

Filterbecken RWR 80 L KST Voll-Automatik SPS

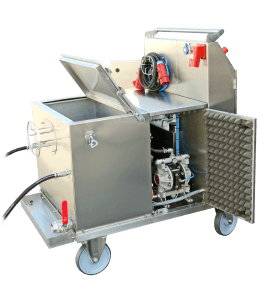

Innenansicht RWR 80 L KST Voll-Automatik SPS

RWR-80 L KST Fully Automatic SPS

Art.-Nr : G2980-SPS

The RWR 80 L KST fully automatic with PLC has been designed for the cleaning of cooling ducts in plastic injection moulds. The benefit for you: The easy operation thanks to the PLC control that ensures the automatic sequence.

The RWR 80 L KST fully automatic with PLC is the optimal solution for the cleaning of internal circulation systems – and without any dismantling.

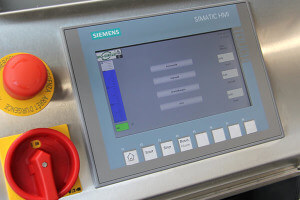

Visual display of the 5-stage sequence program
A variety of parameters can be set, such as processing temperature (adjustable up to 60 °C max.)
Automatic flow reversal
Integrated flushing device for corrosion protection
Compact size
Noise reduction by means of the outer casing
Tank insulation

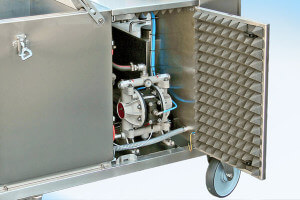

Constant compressed-air supply to the diaphragm pump
Flow measurement of ducts/pipes
Operation-hour counter
Recommended cleaner: Power Cleaner KST 2.0

Do you have any questions concerning this product?

Product Details

The Bio-Circle RWR systems are the optimal solution for the cleaning of internal circulation...more

Close menu

RWR-80 L KST Fully Automatic SPS

The Bio-Circle RWR systems are the optimal solution for the cleaning of internal circulation systems – and without any dismantling.

Outer dimensions → approx. 1200 x 800 x 1050 mm
Power supply → 400 V 50 Hz plug 16 A CEE 5p 6h
Emptying → 1 1/4" outlet

Technical specification

Type of contamination:	Limescale, rust (mineral), Oil, grease
Amount of parts:	Individual parts, Small series, small quantities
Component geometry:	Whole components (without dismantling)
Seal of approval:	Bio-Circle Service available, Stainless Steel
Füllmenge maximal:	80 L
Tank material:	V2A Edelstahl
Power supply:	400V / 50 Hz
Heating:	4,5 kW
Flow rate:	25 l/min
Temperature (preset):	60 °C
Total weight of the machine without tank filing:	110 KG

The RWR 80 L KST fully automatic with PLC has been designed for the field of plastic injection...more

Close menu

Field of application

The RWR 80 L KST fully automatic with PLC has been designed for the field of plastic injection moulding and can be used wherever cooling ducts (circulation systems, pipes) require cleaning.

Fill the RWR 80 L KST fully automatic with PLC with Power Cleaner KST 2.0. Once the minimum...more

Close menu

Usage

Fill the RWR 80 L KST fully automatic with PLC with Power Cleaner KST 2.0. Once the minimum filling level has been reached and the system has been switched on, it will start heating up.

During the heat-up phase, the system can already be connected to the mould by means of the two hoses.

The 5-stage cleaning program and the flow reversal will run automatically once the instructions displayed on the screen have been acknowledged.

Passivation of the component with corrosion protection will occur automatically in program sequence 4.

Please observe the Operating Instructions, pp. 28 – 38.
