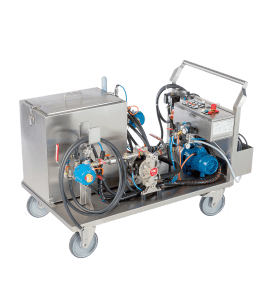

RWR-80 L KST Dual Automatic

RWR-80 L KST Dual Automatic

G29024

The RWR by Bio-Circle is the ideal solution for removing limescale, corrosion and other contaminations from closed-loop systems. It can be used on pipes, heat exchangers, coolers/radiators and other internal circuits. It increases the effectiveness of the ducts in question, thus avoiding efficiency losses.

  • System for the cleaning of internal circuit systems
  • Descales, derusts, and degreases pipes and cooling ducts
  • No time-consuming dismantling required

Product Details

The Pipe and Heat Exchanger Cleaning Device (RWR for short) by Bio-Circle the perfect solution...more
RWR-80 L KST Dual Automatic

The Pipe and Heat Exchanger Cleaning Device (RWR for short) by Bio-Circle the perfect solution for removing contaminations form the inside of cooling circuits. Rust and limescale but also other contaminations tend to build up in such systems. In former days, these contaminations had to be removed in a cumbersome process by dismantling the entire system to clean the individual areas.

With the RWR, this tedious and time-consuming method of cleaning is a thing of the past. Just connect the Pipe Cleaning Device to the circuit and initiate the cleaning process.

The Pipe Cleaning Device comes with 1” hoses that are connected to the system. The useful volume of the system is 60 L – this means that circuit of a volume of up to 60 L can be cleaned. Bigger systems are available on request. Just contact us! The cleaning temperature has been factory-set at an optimal 60°C/140°F, but it can be adjusted between 30°C/86°F and 90°C/194°F.

The most important technical details at a glance:

  • 1/2” hose diameter
  • 60 L useful volume
  • 400 V / 50 Hz power supply
  • Factory-set at an optimal 60°C/140°F (adjustable between 30°C/86°F and 90°C/194°F)

The right cleaners for every application

Choosing the right cleaning fluid is just as important as choosing the right device for the process.

The following cleaners are suitable for use in the RWR:

  • Power Cleaner 150
  • Power Cleaner KST
  • Power Cleaner DB
  • Power Cleaner 400
  • Smoke Resin Remover DB
  • UNO SF

The products of the Power Cleaner range can be sued for derusting or descaling, Smoke Resin Remover DB and UNO SF for degreasing.

Related links to "RWR-80 L KST Dual Automatic"

Seals of approval
Only available in Germany
For further information, please contact your Bio-Circle partner
Stainless Steel
Technical specificationmore

Technical specification

Type of contamination: Limescale, rust (mineral), Oil, grease
Amount of parts: Individual parts, Small series, small quantities
Component geometry: Whole components (without dismantling)
Seal of approval: Bio-Circle leasing, Bio-Circle Service available, Stainless Steel
Filling quantity maximum :60 L
Füllmenge maximal:80 L
Width:770
Tank material:V2A Stainless Steel
Power supply:400V, 50 Hz
Heating:4,5 kW
Pump:0,37 kW
Flow rate:56 l/min
Temperature (preset):60 °C
Total weight of the machine without tank filing:130 KG
Frequenz:50 Hz
Spannung:400 V
The RWR has already been used successfully in the following areas:  Pipe systems ...more

Field of application

The RWR has already been used successfully in the following areas:

  • Pipe systems
  • Heat exchangers
  • Coolers/radiators
  • Temperature control units
  • Closed-loop toilet systems, such as those on planes and trains

If you are in doubt, you are welcome to contact us. Our experts will be happy to advise you on your individual challenges.

Just fill the RWR with the appropriate cleaning fluid. If the heating is switched on, the system...more

Usage

Just fill the RWR with the appropriate cleaning fluid. If the heating is switched on, the system will start heating up automatically once the minimum filling level has been reached.

Then connect the RWR to the part to be cleaned, using the appropriate hose clamps for the system in question. Cleaning can already start during the heating period.

After cleaning just disconnect the hoses carefully. Drain excess cleaning fluid from the part and rinse with water. After that, the part can again be used as usual.

MATCHING CLEANERS

  • Power Cleaner 150
    Details
    The gentle cleaner of the POWER CLEANER range is approved for the food industry....
    • plastic jerrican 20 L
    • plastic bottle with...
    • Plastic barrel 200 l
    • 20 HDPE Flaschen à...
  • Power Cleaner KST 2.0
    Details
    Low-foaming, acidic high-performance cleaner, especially designed for mechanical use...
    • plastic jerrican 20 L
    • Plastic barrel 200 l
