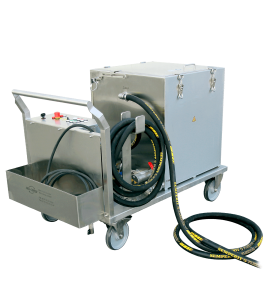

RWR 300, Pipe and heat exchanger

Art.-Nr : G29200

The RWR systems by Bio-Circle are the perfect solution for the cleaning of internal circulation systems (pipes, heat exchangers and temperature control units) – and without any dismantling. Using the RWR guarantees that the ducts of your system remain clean, which ensures effective functioning.

Ready for connection, with acid- and lye-resistant hoses
Mobile device, mounted on a stainless-steel dolly with rubberized castors
Easy handling: no time-consuming dismantling – just connect feed- and return lines and start cleaning

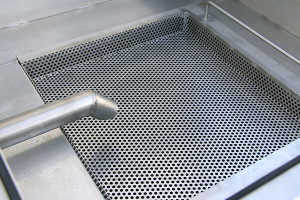

VA fluid container with integrated drain
VA heating with adjustable thermostat (up to 90 °C/194 °F), factory-set at optimal 60 °C/140 °F
Washing liquid tank capacity: 300 L
Recommended cleaners: Power Cleaner DB, Smoke Resin Remover DB

Do you have any questions concerning this product?

Product Details

Over time, limescale, corrosion and other contaminations settle and form incrustations, which...more

Close menu

RWR 300, Pipe and heat exchanger

Over time, limescale, corrosion and other contaminations settle and form incrustations, which leads to cross-section constrictions – the system can no longer realize its full performance. Using the RWR guarantees that the ducts of your system remain clean, which ensures effective functioning.

Technical specification

Type of contamination:	Limescale, rust (mineral), Oil, grease
Component geometry:	Whole components (without dismantling)
Seal of approval:	Bio-Circle Service available, Stainless Steel
Füllmenge maximal:	300 L
Tank material:	V2A Stainless Steel
Power supply:	400V / 50 Hz
Heating:	2 x 6 kW
Pump:	3 kW
Flow rate:	12,6 m³/h
Temperature (preset):	60 °C
Total weight of the machine without tank filing:	170 KG

Across all sectors of the industry Maintenance of system ducts more

Close menu

Field of application

Across all sectors of the industry
Maintenance of system ducts

For the cleaning of pipes, heat exchangers, and temperature control units Just connect the...more

Close menu

Usage

For the cleaning of pipes, heat exchangers, and temperature control units
Just connect the ducts to the feed- and return lines of the RWR and have the cleaner flush the system by means of the integrated centrifugal pump in a circulation process, no time-consuming dismantling required
Recommended cleaners: Power Cleaner DB, Smoke Resin Remover DB
